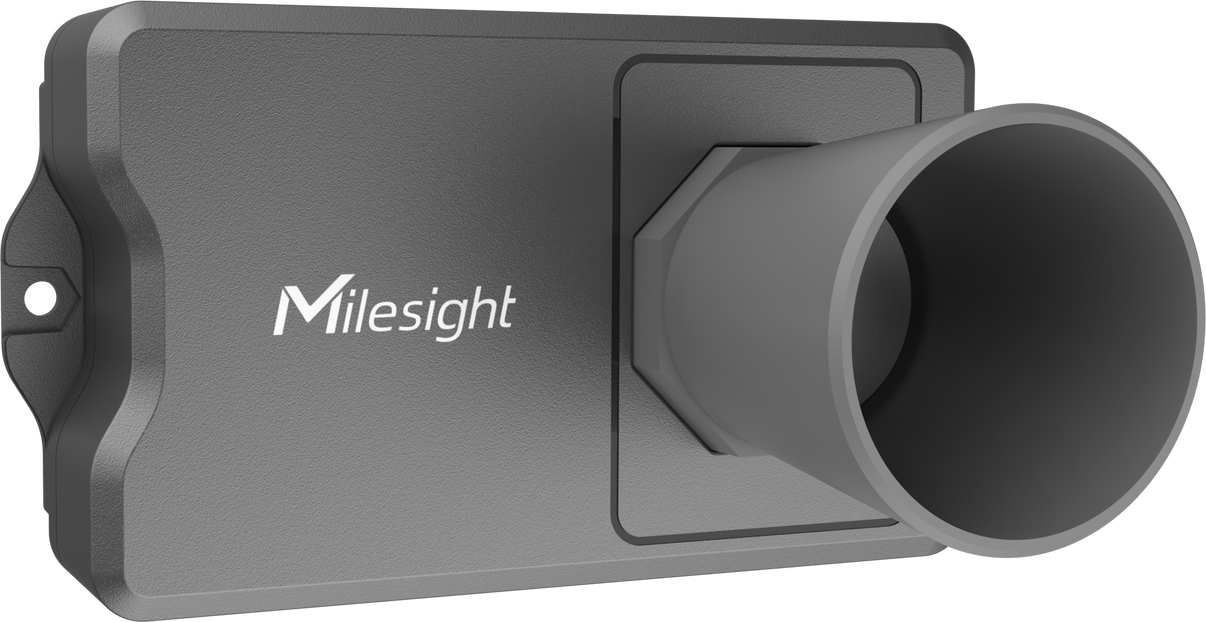

ToF Laser Distance Sensor EM400

EM400-TLD ToF Laser Distance Sensor – lorawan®-Based Smart Fill Level Monitoring

The Milesight EM400-TLD is a compact, rugged, and intelligent laser-based distance sensor purpose-built for monitoring the fill level and position of small trash bins, containers, and compact assets. Using ToF (Time of Flight) technology with ultra-short blind zone and high detection accuracy, it provides real-time insight into bin fill levels, tilt status, and fire risks. Designed for harsh outdoor environments, the EM400-TLD features an IP67 waterproof enclosure, integrated 3-axis accelerometer, built-in temperature sensor, and ultra-long battery life—making it the perfect solution for smart waste management and industrial applications.

Key Features

• ToF (Time of Flight) laser sensor with 2–350 cm detection range and 1 mm resolution
• Short blind zone and 27° FoV ideal for small-size bins and containers
• High-accuracy distance detection with ±2 cm precision
• Built-in NTC temperature sensor to detect trash burning or overheating
• 3-axis accelerometer for tilt detection and lid monitoring
• IP67 waterproof housing with internal damp-proof coating for reliable outdoor performance
• Equipped with NFC for easy one-touch configuration (card emulation supported)
• Dual 9000 mAh batteries deliver up to 10 years of battery life
• lorawan® version supports transmission up to 15 km (line of sight)
• NB-IoT/Cat.M version includes GNSS for location tracking and flexible protocols (TCP/UDP/MQTT/AWS)
• Compatible with Milesight IoT Cloud and standard lorawan® gateways

Technical Specifications

Ideal Applications

• Smart Waste Management (trash bins, recycling containers)
• Public Facility Fill Level Monitoring
• Smart City Environmental Systems
• Temperature Monitoring for Waste Combustion Risk
• Asset Tracking with Tilt or GNSS (NB-IoT Version)

Smarter Waste, Safer Spaces.

The EM400-TLD redefines environmental sensing for waste and fill-level applications—blending accuracy, longevity, and intelligence in a rugged, compact design. Available now from TerraQ Technologies across the MEA region.
