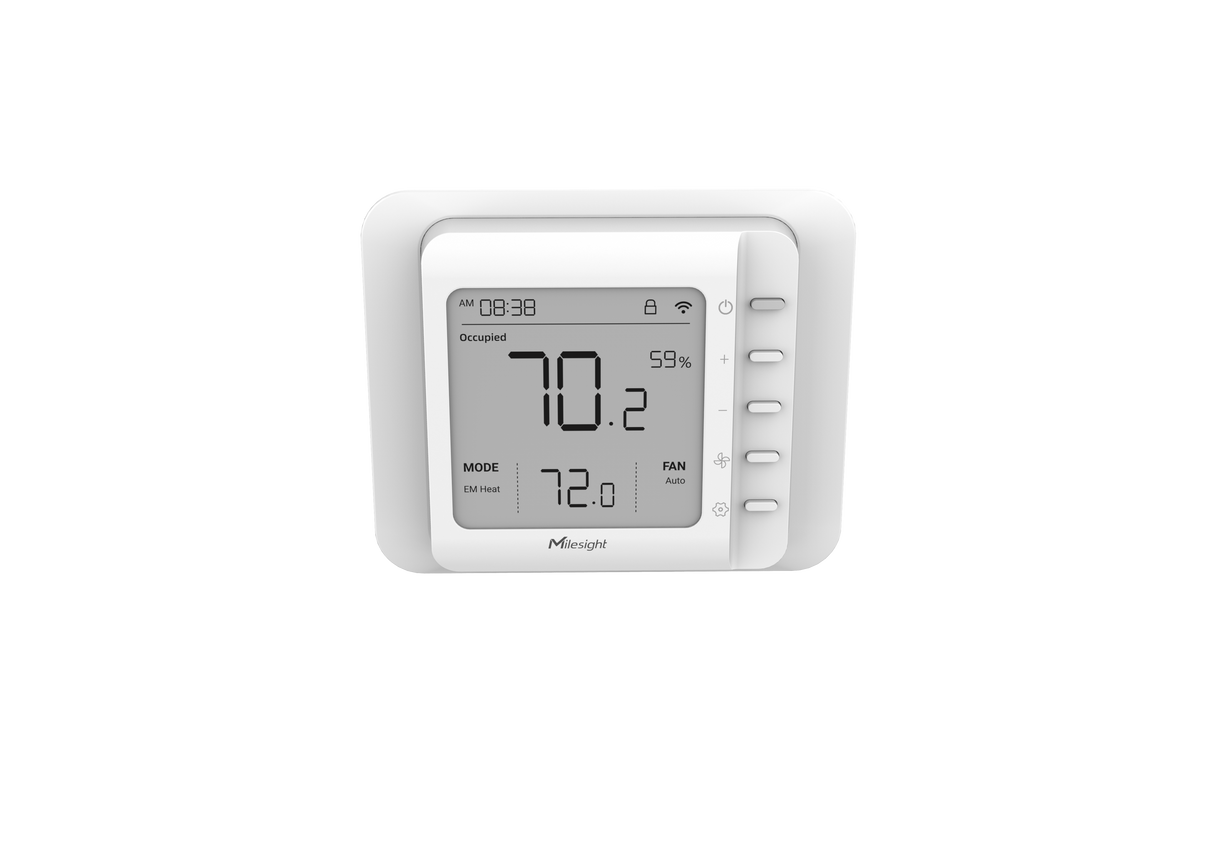

Smart Thermostat WT201

SKU: WT201
Dhs. 894.57 AED
Shipping calculated at checkout.
WT201 Smart Thermostat – lorawan® HVAC Controller with Intelligent Scheduling The Milesight WT201 is a lorawan®-enabled smart thermostat designed to manage a wide range of HVAC systems, including furnaces, air...

Stock Adequate！Ready to ship

Smart Thermostat WT201
Dhs. 894.57 AED

Payment and security

  • American Express
  • Apple Pay
  • Mastercard
  • Visa
View details

WT201 Smart Thermostat – lorawan® HVAC Controller with Intelligent Scheduling

The Milesight WT201 is a lorawan®-enabled smart thermostat designed to manage a wide range of HVAC systems, including furnaces, air conditioners, heat pumps, boilers, AHUs, and PTAC units. Featuring a 4.2-inch LCD display and advanced automation capabilities, the WT201 allows for precise temperature control, real-time monitoring, and cloud-based scheduling—ideal for residential, hospitality, and commercial environments. Built for flexibility, it integrates with hotel room keycard systems, supports BACnet via lorawan®, and offers up to 16 customized schedules per mode for optimized comfort and energy savings.

Key Features

  • Compatible with most 24VAC HVAC systems (Furnaces, AC, Heat Pumps, PTACs, Boilers)
  • Supports 4 temperature control modes (Heat, Cool, Auto, Emergency Heat)
  • 3 fan modes: Auto, On, Circulate
  • 16 customizable schedules for each working mode
  • Integrated temperature & humidity sensor with high accuracy
  • Real-time alerts for sudden environmental changes
  • Stores up to 1000 historical records locally with retransmission support
  • Seamless integration with hotel keycard power-saving systems
  • 4.2-inch LED backlit display for clear temperature and status visibility
  • Child lock, tamper-proof mounting, and freeze protection for safety and convenience
  • NFC-enabled configuration via mobile app, plus USB-C and downlink support
  • Supports Milesight D2D peer-to-peer control and multicast scheduling
  • Compatible with Milesight lorawan® gateways and IoT Cloud platform

Technical Specifications

Category Specification
Display 4.2"" LCD Segment Code with White Backlight
HVAC Compatibility 24VAC Systems:
• Furnaces / AC (2H/2C)
• Heat Pumps (4H/2C + 1 AUX)
• Boilers
• PTAC units
Temperature Modes Heat, Cool, Auto, Emergency Heat
Fan Modes Auto, On, Circulate
Temperature Sensor CMOSens® MEMS
Range: -20°C to +60°C
Accuracy: ±0.5°C (0–60°C), ±1°C (-20–0°C)
Resolution: 0.1°C
Humidity Sensor CMOSens® MEMS
Range: 0%–100% RH
Accuracy: ±3% (40–85%), ±5% (else)
Resolution: 0.5% RH
Wireless Protocol lorawan® (Class C, OTAA/ABP), Milesight D2D
Frequency Bands US915 / AU915 / KR920 / AS923 (1–4)
Tx Power 22 dBm
Sensitivity -137 dBm
Inputs 1 × Digital Input (100–250 VAC) for Keycard Switch
Advanced Features Heating/Cooling Scheduling (16 per mode), Freeze Protection, Threshold Alarms,
Child Lock, Data Storage & Retransmission, Multicast, BACnet compatibility
Power Supply 20–30 VAC (Nominal 24VAC)
Configuration NFC, USB Type-C, or Downlink
Ingress Protection IP30
Material / Color PC + ABS (Flame Retardant), White
Operating Temp -20°C to +60°C
Humidity 0% to 95% RH (non-condensing)
Dimensions 113 × 110 × 21 mm
Weight 172 g
Mounting Wall Mount with Screws

Ideal Applications

  • Hotel Room HVAC Automation
  • Residential Temperature Management
  • Office Climate Control Optimization
  • Smart Campus and Hospitality Projects
  • Energy-Efficient Public Buildings

Flexible Control. Precise Comfort. Sustainable Heating & Cooling.

The WT201 Smart Thermostat empowers building operators and occupants with smarter HVAC control—ensuring energy efficiency, user comfort, and operational scalability. Available now from TerraQ Technologies across the MEA region.
Display technology LCD
HVAC control type Smart
Power source AC-powered
